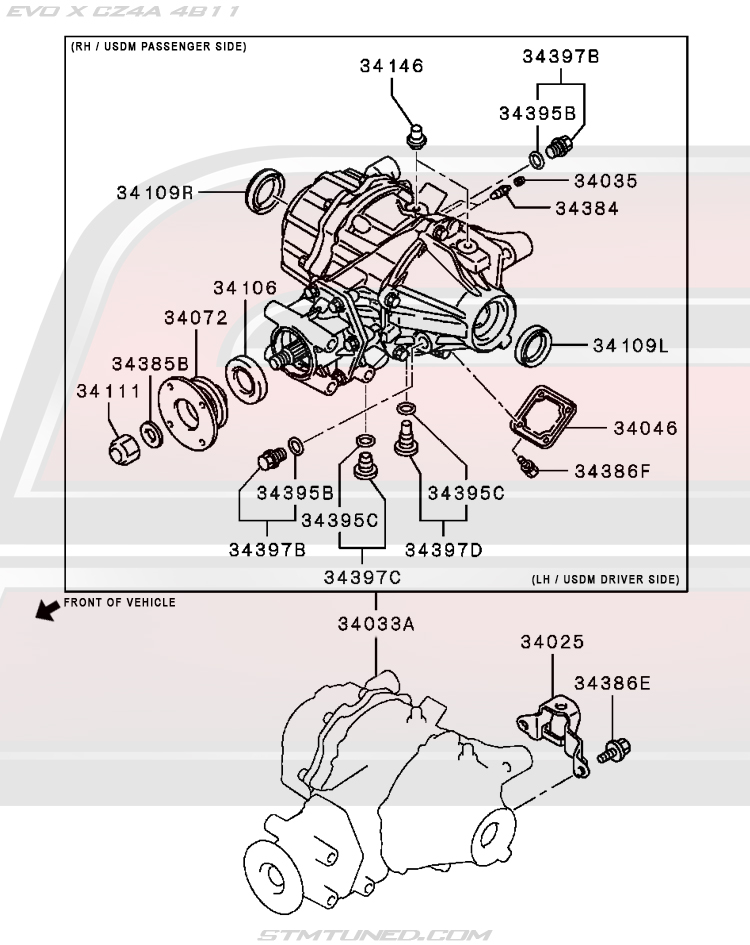

2008-2015 Evolution X / Drivetrain / Rear Axle Differential |
|
| IMAGE |
DIAGRAM
NUMBER |
PART
NUMBER |
QUANTITY
USED IN
DIAGRAM |
DESCRIPTION |
|
|
34025 |
MR580044 |
1 |
Rear Diff Support
All 2008-2015 Evolution X |
|
34033A |
3501A121 |
1 |
Rear Differential (Full Assembly)
All 2008-2015 Evolution X |
|
34035 |
MV026287 |
2 |
Bleeder Screw Cap
All 2008-2015 Evolution X |
|
34046 |
MR222005 |
1 |
Rear Diff Carrier Cover
All 2008-2015 Evolution X |
|
34072 |
3415A015 |
1 |
Rear Diff Companion Flange
All 2008-2015 Evolution X |
|
34106 |
MB393929 |
1 |
Rear Diff Drive Pinion Oil Seal
All 2008-2015 Evolution X |
|
34109L |
3515A049 |
1 |
Rear Diff Axle Seal (LH)
All 2008-2015 Evolution X |
|
34109R |
MN132370 |
1 |
Rear Diff Axle Seal (RH)
All 2008-2015 Evolution X |
|
34111 |
MA143517 |
1 |
Driveshaft/Diff Locking Nut 18mm
All 2008-2015 Evolution X |
|
34146 |
MB936390 |
2 |
Rear Diff Vent Plug
All 2008-2015 Evolution X |
|
34384 |
4610A018 |
2 |
Rear Diff Bleeder Screw
All 2008-2015 Evolution X |
|
34385B |
MT203641 |
1 |
Driveshaft/Diff Locking Nut 18.5mm
All 2008-2015 Evolution X |
|
34386E |
MF140258 |
2 |
Rear Diff Support Bolt M10x20
All 2008-2015 Evolution X |
|
34386F |
MF240023 |
4 |
Rear Diff Carrier Cover Bolt M6x12
All 2008-2015 Evolution X |
|
34395B |
MF660036 |
2 |
Rear Diff Fill Plug Gasket 16mm
All 2008-2015 Evolution X |
|
34395C |
MN130495 |
2 |
Rear Diff Drain Plug Gasket 18.2mm
All 2008-2015 Evolution X |
|
34397B |
MR325595 |
2 |
Rear Diff Fill Plug with Gasket
All 2008-2015 Evolution X |
|
34397C |
3713A013 |
1 |
Rear Diff Drain Plug with Gasket
All 2008-2015 Evolution X |
|
34397D |
3713A029 |
1 |
Rear Diff Drain Plug with Gasket
All 2008-2015 Evolution X |
