AEM 50-1220 320LPH E85-COMPATIBLE HIGH FLOW IN-TANK FUEL PUMP
AEM 50-1220 320lph E85-Compatible High Flow In-Tank Fuel Pump
Compatible with these Applications:
2008-2015 Mitsubishi Lancer Evolution X
2009+ Nissan GTR R35 (Requires two pumps)
2013-2016 Subaru BRZ & Scion FR-S
2002-2007 Subaru WRX & STi
STM Price: $122.99 MSRP: $170.83
AEM's 320lph E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline.

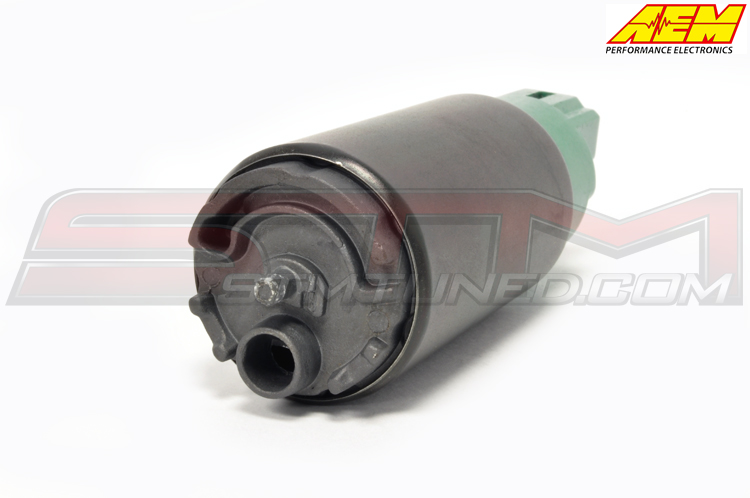

Designed for in-tank mounting and features a compact 39mm diameter and an offset inlet design that eases installation.
This physical size of this fuel pump makes it a great replacement for popular enthusiast applications (NOTE: The plug wiring may need to be updated for some applications). Its compact, short body design (65mm length) with mounting hooks also makes it ideal in universal applications that have fuel tanks with tight tolerances.

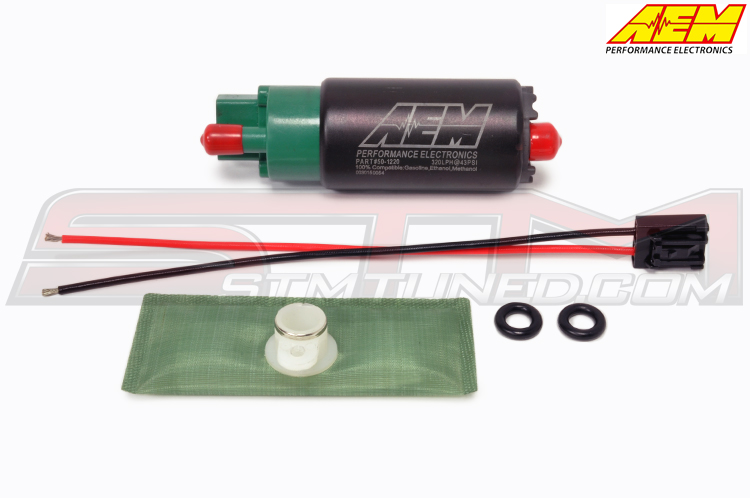

The 320lph E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter and O-rings. Every AEM 320lph E85-Compatible Fuel Pump is tested to flow 320 lph at 43 PSI before it is packaged for sale.
Weight: 10.4oz (294grams)
Outside Diameter: 39mm OD
External Materials: Black plated steel with laser etching, green/gray end caps
Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline
Outlet Fitting: 8 mm hose clamp. Offset
PRV Activation: 80 PSI
Impeller Design: Single Scroll Ceramic Turbine
Connector Terminal: 6 mm Spade (pos/neg)
Min Voltage Input: 6 volts
Max Voltage Input: 18 volts
Current Draw (40 psi): 12 amps (13.5v)
Current Draw (80 psi): 15 amps (13.5v)
Fuse: 15 amps (13.5v), 20 amps (13.5v) MAX
- Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In tank design

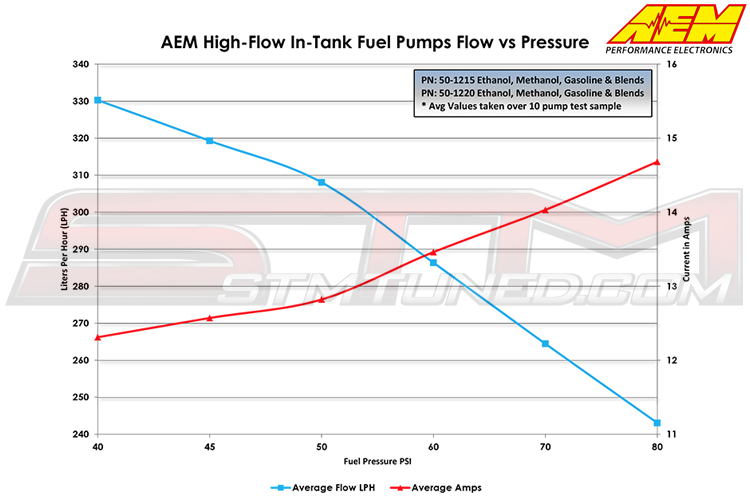

- Each pump is tested to flow 320 lph @ 43 PSI

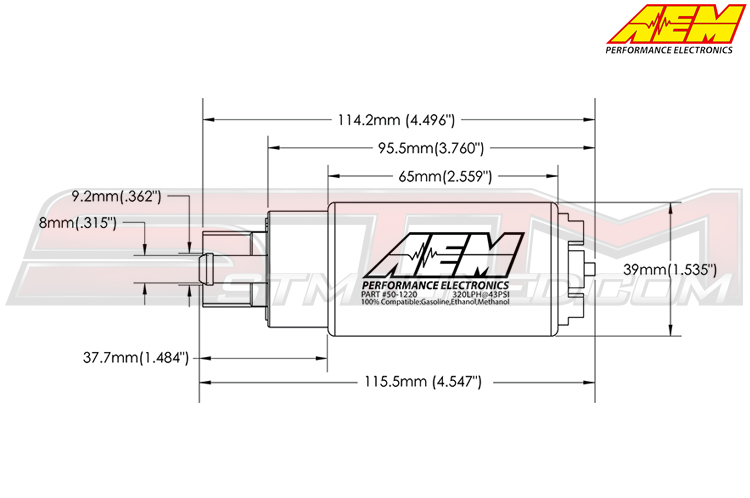

- Compact body (39mm diameter x 65mm length)
O-rings (use of stock isolator sleeve is recommended)
