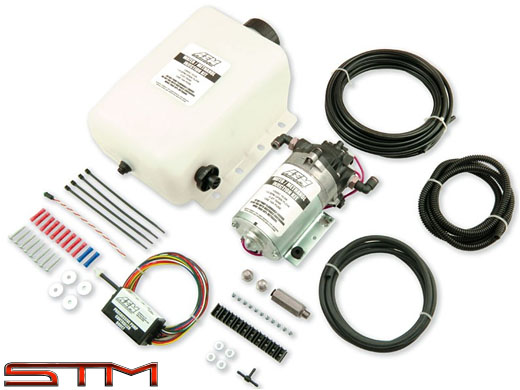

AEM V2 1 Gallon Water/Methanol Injection Kit (Internal Map)

AEM's Boost Dependent, PN 30-3300 gasoline Water/Methanol Injection System's compact 1 gallon tank includes a high tech conductive low fluid level indicator with a positive lock connector and color matched wires to the wiring harness.

Boost Dependent controller features on-board MAP sensor with large adjustment knobs, integrated plug for harness connection, integrated fuse, covered status light and test button for enhanced splash resistance and mounting tabs.

Wiring harness is terminated with a positive-lock connector on one end with color-coded wires to ease installation, power and ground wires for the pump and additional wire for optional on/off fluid solenoid.

"Boost Safe" failsafe output included (for complete failsafe under all conditions, see Water/Methanol Failsafe Device).

Internally-bypassed water/methanol injection pump does not cycle on an off and provides quiet, smooth operation. It features robust construction including integral hose fittings, EPDM seals and a Santoprene diaphragm that provides consistent and reliable fluid delivery.

Precision-machined billet-aluminum injector with integral check valve.

Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min).

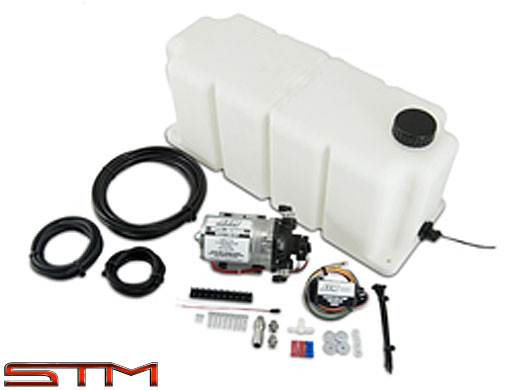

1 gallon tank(10" x 8.5" x 4.25") with integral conductive low-fluid sensor and positive lock connector (tank-less water/methanol gas systems available, AEM Part #30-3302 includes controller with on-board 35 PSI MAP sensor).

20 feet of Nylon injection tubing included.

LED dash light for system status and low fluid warning.

For more information see AEM Electronics 30-3300
