STM EVO 8/9 6870 V-BAND FORWARD-FACING TURBO KIT
STM Evo 8/9 6870 V-Band Forward-Facing Turbo Kit
Fits these Applications:
2003-2006 Mitsubishi Lancer Evolution VIII-IX
STM Price: $5950.00

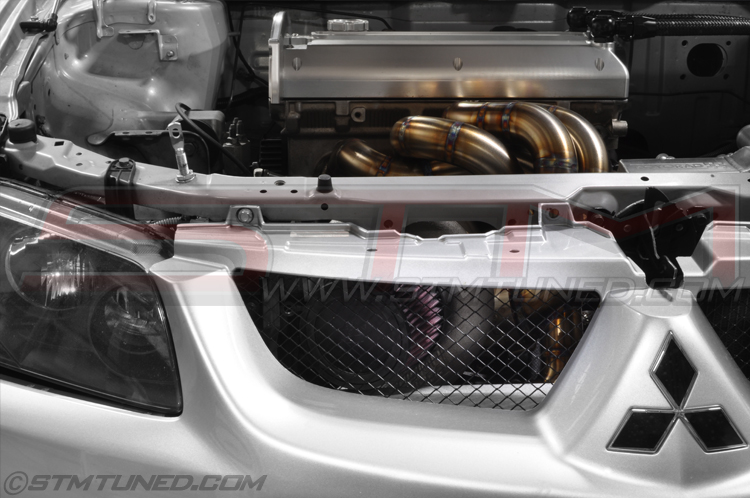

If you're looking for the hottest turbo kit of the season, this is it! The all new STM 6870 V-Band Forward-Facing Turbo Kit fits all Evo 8/9 models with a new v-band manifold design and 3.5" downpipe & housing and as per STM custom, places compressor housing right in the front bumper for the best performance and allows the whole world to gawk at.
This kit can work with A/C, but you'll need a different condenser and custom lines. If you have any questions or would like to order a variation of this kit, just give us a call.

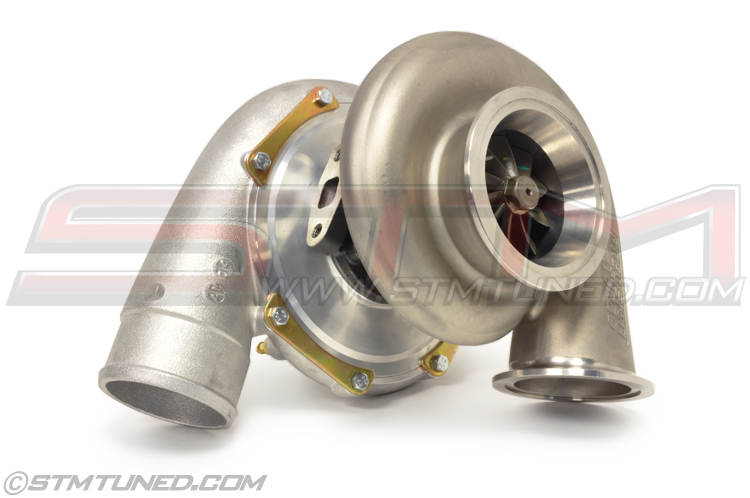

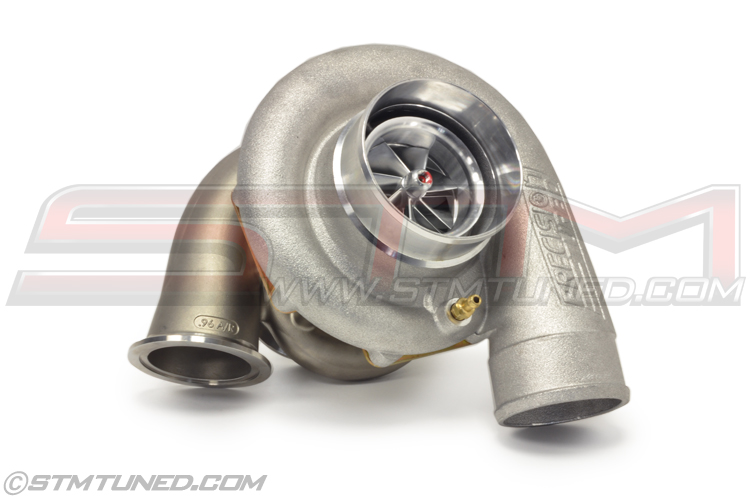

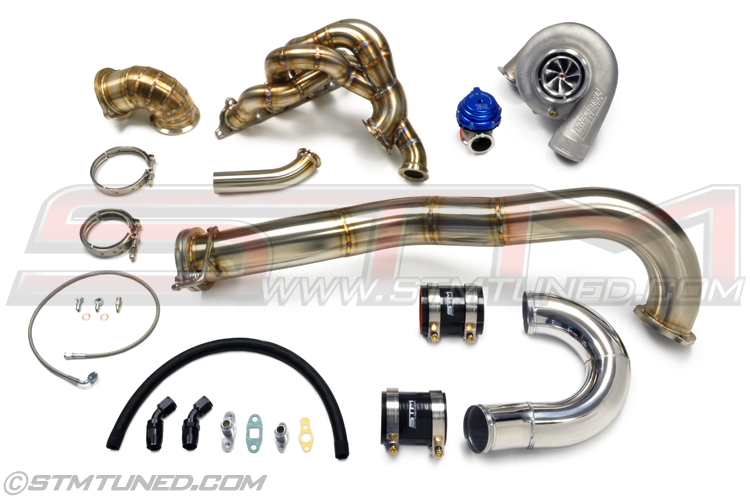

- (1) PTE 6870 V-Band Turbo with Stainless Hot Side and H-Cover (3" Outlet / 4" Inlet)

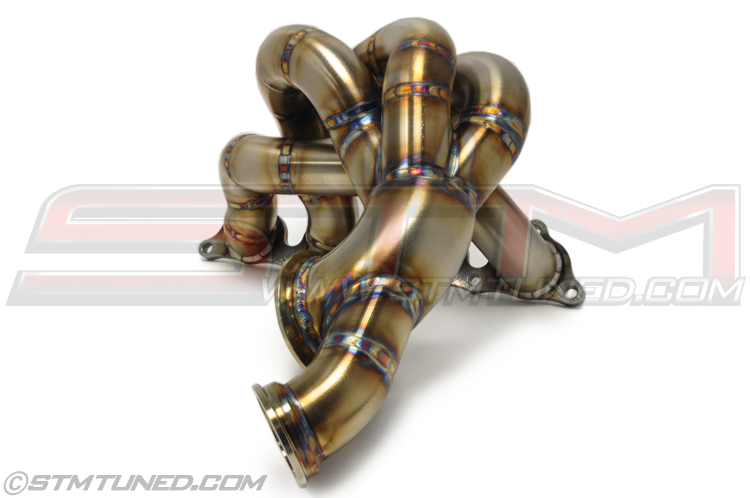

- (1) STM V-Band Manifold
- (1) STM O2 Housing

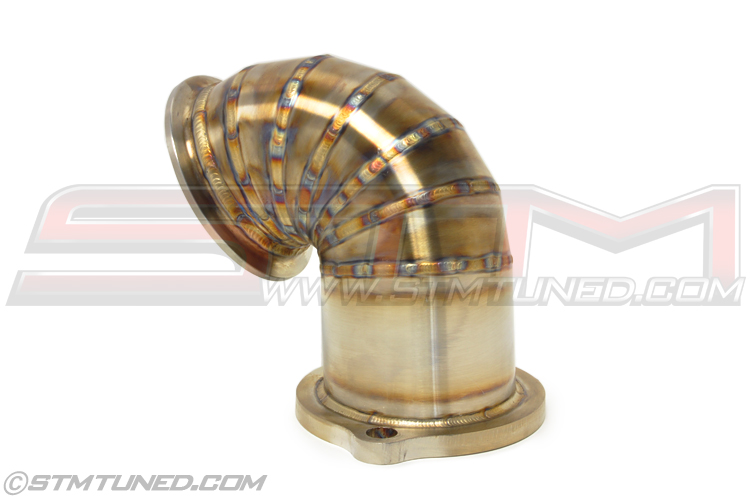

- (1) STM Dump Tube

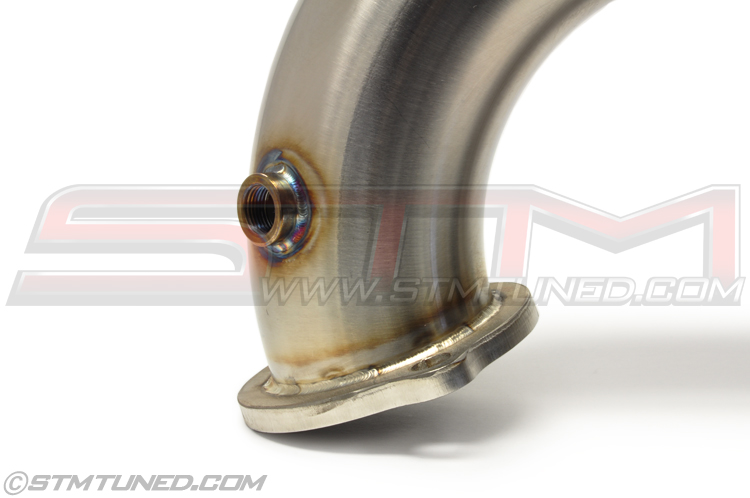

- (1) STM Downpipe
- (1) V-Band Clamp for Turbo to Manifold
- (1) V-Band Clamp for Turbo to Downpipe
- (1) TiAL MV-R 44mm Wastegate (Choice of Color)
- (1) STM Oil Feed Line
- (1) STM Oil Return Line
- (1) STM Aluminum Lower 3" Intercooler Pipe
- (2) STM 3" Couplers & Clamps
- (2) Remflex Gaskets for Downpipe
- (1) Extra 3.5" 2-Bolt Flange (to weld to your current exhaust)
- (4) Mounting Hardware - Bolts, Nuts Washers
Made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.
Click the image above for high-resolution.
This turbo kit will allow for an air filter, so if your racing class requires a filter, you can run one.
You must remove your air conditioning system.
This kit will clear the power steering pump.
This kit will clear the stock A/C compressor, and can work with with a different condenser and custom lines.

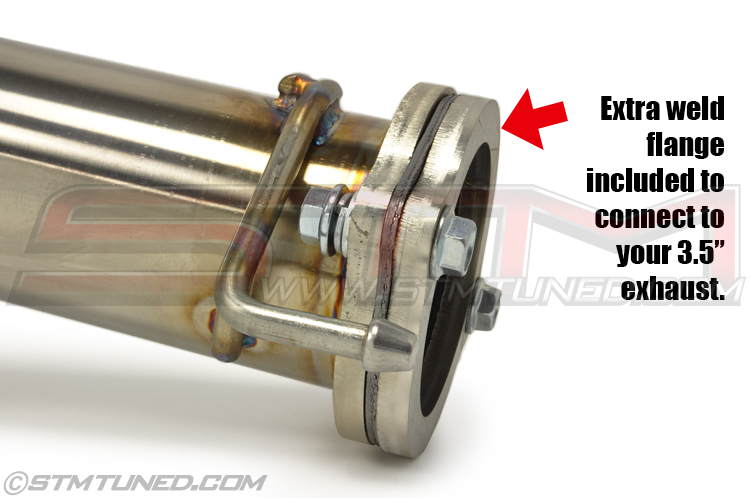

We include an extra 3.5" weld flange to match our downpipe (pictured below). We would suggest having the back half of your exhaust custom built with 3.5" tube, but the option to weld this flange to your existing 3" is always there, however it is obviously not recommended.
You will need a half-sized radiator, we offer our STM Kit in the purchase menu above if you don't already have one.
