The AEM Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc.
The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals.
Specs:
- Total Resistance: 14.3KO
- Cycles Minimum: 10,000
- Positions: 12
- Degree Rotation: 330
- Mounting: 3/8" Hole
- Jam Nut: 1/2" Hex
- Knob Set Screw: 1/16" Allen
- Supply Current: 5 Vdc
- Output: .See table below
- Over mold weatherproof body with 12" leads
- 1 Red (Supply Voltage 5Vdc +/- .5)
- 1 Black (Ground)
- 1 White (Output)

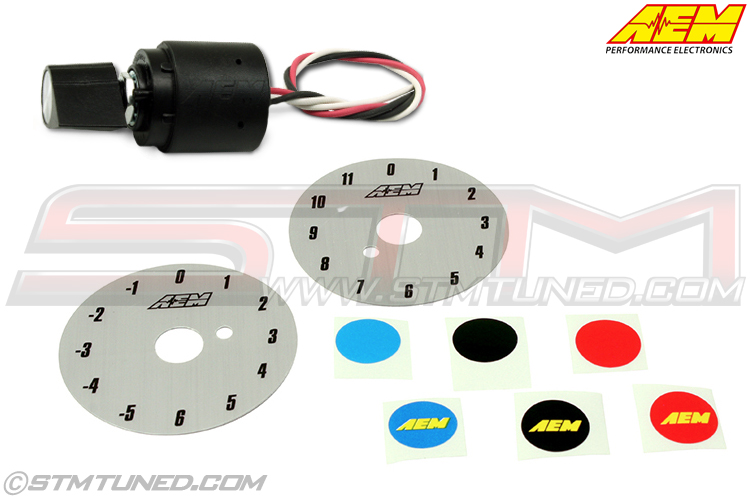

Includes:
(1) 12 Position Trim Pot with Flying Lead
(2) Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11
(3) AEM Logo Knob Decals (Blue/Red/Black)
(3) Colored Knob Decals (Blue/Red/Black)
