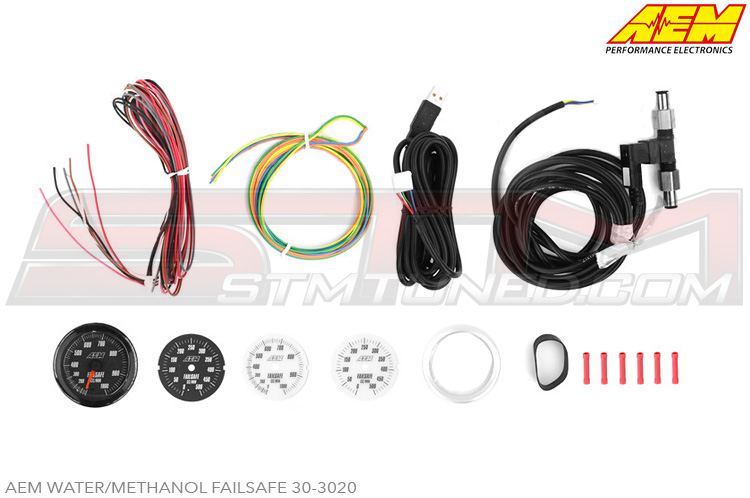

AEM's Water/Methanol FAILSAFE Device is the most advanced water/methanol failsafe device on the market. It actively monitors the injection system's ENTIRE flow curve to compensate for failure under ANY condition, allowing you to use your water/methanol system with complete peace of mind. If you have a water/methanol injection system or are considering one, you will not find a more advanced failsafe device on the market than the AEM Water/Methanol FAILSAFE Device.
Features:
- Actively monitors the entire water/methanol fuel injection curve to trigger an alarm event under any defined adverse condition!
- Can be used on virtually all water/methanol injection systems with either 1/4" or 4mm OD tubing
- "Auto Set" feature automatically creates baseline configuration
- Built-in warning lights inform user of an alarm trigger
- Internal data logger records all injection flow and alarm status data
- Included high-tech analog gauge has black and white faceplates and bezels to match vehicle interior, and is programmable for either 0-500cc/min or 0-1000cc/min flow ranges
- Gauge alarm and backlighting are user programmable to match interior lighting
- Data analysis using AEMdata software
HOW IT WORKS:
Should an alarm trigger, the AEM Water/Methanol FAILSAFE Device has one low-side (ground) driver and one high-side (+12v) driver that can be configured to turn on or off during an alarm condition. For instance, late-model Subaru WRX STi owners can connect the low-side driver to the 'limp' wire behind the kick panel that will dump boost and pull timing via the factory ECU. If you have a supercharged Chevy 350cid small-block, you can use it to pull timing from a switched aftermarket ignition system. The possibilities are endless.

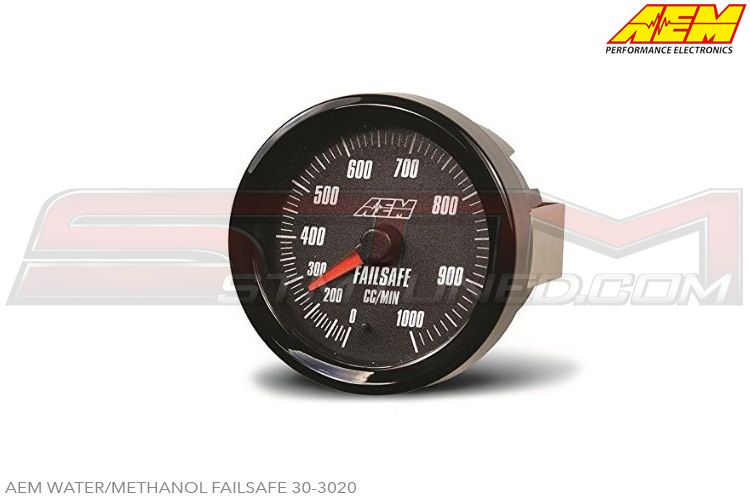

A high-tech analog gauge is included with the AEM Water/Methanol FAILSAFE Device, with programmable backlighting to match your factory gauges. The gauge needle and backlighting can be configured to flash when an alarm is triggered to notify of a potential system error. This system also includes an internal data logger that records injection and alarm status data for future reference.
